Raw materials: granite, basalt, limestone, shale, river pebbles, cement clinker, quartz, phosphate rock, bauxite, steel slag, etc.
Production capacity: 100-400t/h
Applications: primary and secondary crushing applications in mining, aggregates, mineral processing, and recycling construction and demolition waste
Delivery: 30-50 working days
E-mail: info@dscrusher.com

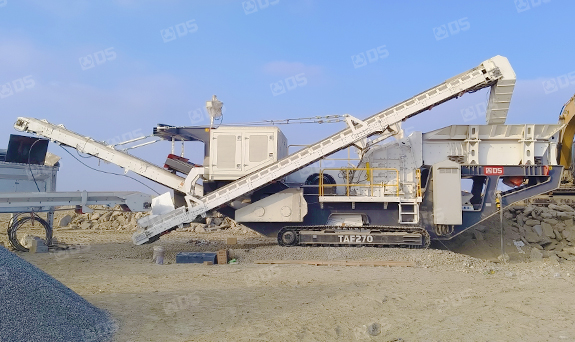

The TAF Series Tracked Impact Crusher is for profitable recycling of asphalt, concrete and demolition rubble as well as natural stone.
The tracked impact crusher is our latest equipment and it can ensures the best final grain quality and has already been successfully introduced into the market.
Feature
1. Compact and sturdy chassis enhances the stability of the production
2. Standard advanced intelligence system
3. Boosted capacity thanks to our Austrian technology AF series impact crushing unit
4. Dual-power package
5. Independent pre-screening unit
1. Maximized uptime thanks to our intelligence system
2. Flexibilities in various working condition
3. Flexible diesel or electric driven
4. Best model to match standard excavator and loader
5. Can be used in open or close circuit
| Model | Max. feed size (mm) | Capacity (t/h) | Installed power (kw) | Running power (kw) | Overall dimension (L*W*H)(mm) |
| TAF270 | 400 | 100-200 | 237.4 | 75 | 14550×5950×4550 |
| TAF340 | 500 | 150-250 | 287.4 | 75 | |
| TAF380 | 600 | 200-300 | 330.9 | 90 | |
| TAF430 | 600 | 300-400 | 365.1 | 110 |
Note: Any change of technical data shall not be advised additionally.
