Raw materials: granite, limestone, basalt, shale, river stone, bluestone, sandstone, calcium carbide, iron ore, copper, steel slag aggregate
Capacity: 200-400t/h
Max feeding size: 350mm
Application: fine screening application in mining,aggregates,mineral processing,and recycling construction and demolition waste
Delivery: 30-50 working days
E-mail: info@dscrusher.com

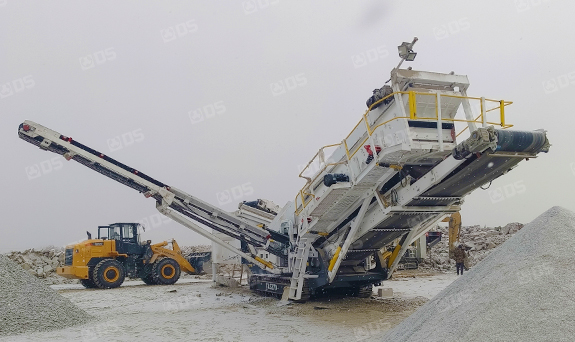

The TAS Series Tracked Screen combines maximum performance with robust and compact design, short set-up times, superior screening results and low fuel consumption. The tracked screen is applicable for a big variety of materials, such as construction waste, gravel, sand, asphalt, etc. The machine is equipped with a direct feeding chute and load-sensing technology.
Feature
1. High capacity two-bearing screen
2. Adjustable screening angle
3. Hydraulic-folded and supported discharge conveyors
4. Easy access to all service point
5. Dual-power package
1. Available in double or triple deck screen
2. Various screening media upon choice
3. Flexibilities in various working condition
4. Electric or diesel driven
| Model | Max. feed size (mm) | Max. feed capacity (t/h) | Installed power (kw) | Running power (kw) | Wokring dimension (mm) |
| TAS270 | 70 | 200 | 44.7 | 75 | 18300×10800×5700 |
| TAS340 | 70 | 250 | 52.2 | 75 | |
| TAS380 | 70 | 300 | 77.5 | 75 | 18300×12800×5900 |
| TAS430 | 70 | 400 | 77.5 | 90 |
Note: Any change of technical data shall not be advised additionally.
